The addrulepath and addfield path missing from menu parameter xml

kevincam3 commented

2017-11-04 07:29:42 +00:00

(Migrated from github.com)

So I manually added the validate attribute to my xml file and added my custom rule to the rule folder and it works fine for the config options and the view, but it breaks in the menu item xml because it's missing the addrulepath and addfield path

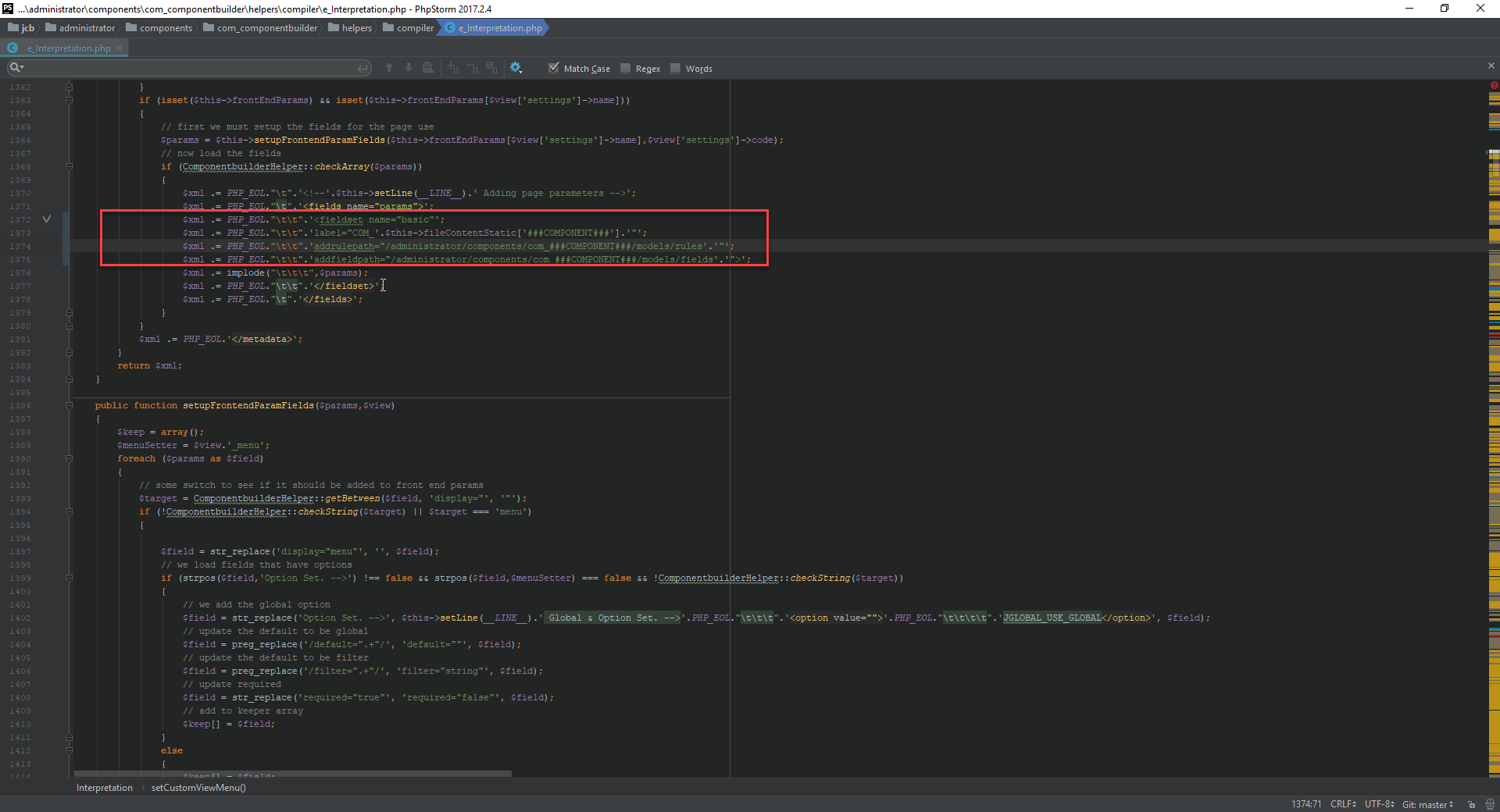

I think they should probably be added here:

So I manually added the validate attribute to my xml file and added my custom rule to the rule folder and it works fine for the config options and the view, but it breaks in the menu item xml because it's missing the addrulepath and addfield path I think they should probably be added here: ![image](https://user-images.githubusercontent.com/870934/32403460-19c2abd4-c121-11e7-8e2e-f9e41c21c876.png)

Llewellyn commented

2017-11-08 10:35:47 +00:00

I have great news on this feature request, please watch this tutorial.

Just a heads-up if you want to use the rule on a view (menu) the implementation is basically the same.

I have great news on this feature request, please [watch this tutorial.](https://www.youtube.com/watch?v=Z6-ggKtX35o&list=PLQRGFI8XZ_wtGvPQZWBfDzzlERLQgpMRE) Just a heads-up if you want to use the rule on a view (menu) the implementation is basically the same.

kevincam3 commented

2017-11-08 12:07:41 +00:00

(Migrated from github.com)

Thanks for the tutorial, I learned a few things that I hadn't added to my implementation, like the BOM thing. But the only way I was able to get it to work with my menu item was to add a rule path to the field in the xml. Without that it wasn't able to find the path to the rule. I discovered this by stepping through the code in the IDE. Adding this path fixed the problem because all the xml files have the path except the default.xml file.

Thanks for the tutorial, I learned a few things that I hadn't added to my implementation, like the BOM thing. But the only way I was able to get it to work with my menu item was to add a rule path to the field in the xml. Without that it wasn't able to find the path to the rule. I discovered this by stepping through the code in the IDE. Adding this path fixed the problem because all the xml files have the path except the default.xml file. ![image](https://user-images.githubusercontent.com/870934/32548229-1d976990-c46c-11e7-9757-ce1fff456a2b.png)

Llewellyn commented

2017-11-08 12:22:16 +00:00

Okay I see... I will add it to the next update, so the default will also have it.

Llewellyn commented

2017-11-08 12:28:25 +00:00

For now the fix will be to add a few lines in the interpreter file at line 1352
replace

$xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">';

with

$xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"';
$xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">';

This should add the rule path to the default view option as well.

For now the fix will be to add a few lines in the interpreter file at [line 1352](https://github.com/vdm-io/Joomla-Component-Builder/blob/master/admin/helpers/compiler/e_Interpretation.php#L1352) replace ``` $xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">'; ``` with ``` $xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"'; $xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">'; ``` This should add the rule path to the default view option as well.

Llewellyn commented

2017-11-08 12:33:41 +00:00

In Fact here is the whole function, so just update the whole function in the file:

public function setCustomViewMenu(&$view)
{
	$xml = '';
	// build the file
	$target = array('site' => $view['settings']->code);
	$done = $this->buildDynamique($target,'menu');
	if ($done)
	{
		// set the lang
		$lang = ComponentbuilderHelper::safeString('com_'.$this->fileContentStatic['###component###'].'_menu_'.$view['settings']->code, 'U');
		$this->langContent['adminsys'][$lang.'_TITLE'] = $view['settings']->name;
		$this->langContent['adminsys'][$lang.'_OPTION'] = $view['settings']->name;
		$this->langContent['adminsys'][$lang.'_DESC'] = $view['settings']->description;
		//start loading xml
		$xml = '<?xml version="1.0" encoding="utf-8" ?>';
		$xml .= PHP_EOL.'<metadata>';
		$xml .= PHP_EOL."\t".'<layout title="'.$lang.'_TITLE" option="'.$lang.'_OPTION">';
		$xml .= PHP_EOL."\t\t".'<message>';
		$xml .= PHP_EOL."\t\t\t".'<![CDATA['.$lang.'_DESC]]>';
		$xml .= PHP_EOL."\t\t".'</message>';
		$xml .= PHP_EOL."\t".'</layout>';
		if (isset($this->hasIdRequest[$view['settings']->code]) || isset($this->hasCatIdRequest[$view['settings']->code]))
		{

			$xml .= PHP_EOL."\t".'<!--'.$this->setLine(__LINE__).' Add fields to the request variables for the layout. -->';
			$xml .= PHP_EOL."\t".'<fields name="request">';
			$xml .= PHP_EOL."\t\t".'<fieldset name="request"';
			$xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"';
			$xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">';
			if (isset($this->hasIdRequest[$view['settings']->code]) && ComponentbuilderHelper::checkArray($this->hasIdRequest[$view['settings']->code]))
			{
				foreach($this->hasIdRequest[$view['settings']->code] as $requestFieldXML)
				{
					$xml .= PHP_EOL."\t\t\t".$requestFieldXML;
				}
			}
			if (isset($this->hasCatIdRequest[$view['settings']->code]) && ComponentbuilderHelper::checkArray($this->hasCatIdRequest[$view['settings']->code]))
			{
				foreach($this->hasCatIdRequest[$view['settings']->code] as $requestFieldXML)
				{
					$xml .= PHP_EOL."\t\t\t".$requestFieldXML;
				}
			}
			$xml .= PHP_EOL."\t\t".'</fieldset>';
			$xml .= PHP_EOL."\t".'</fields>';
		}
		if (isset($this->frontEndParams) && isset($this->frontEndParams[$view['settings']->name]))
		{
			// first we must setup the fields for the page use
			$params = $this->setupFrontendParamFields($this->frontEndParams[$view['settings']->name],$view['settings']->code);
			// now load the fields
			if (ComponentbuilderHelper::checkArray($params))
			{
				$xml .= PHP_EOL."\t".'<!--'.$this->setLine(__LINE__).' Adding page parameters -->';
				$xml .= PHP_EOL."\t".'<fields name="params">';
				$xml .= PHP_EOL."\t\t".'<fieldset name="basic" label="COM_'.$this->fileContentStatic['###COMPONENT###'].'"';
				$xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"';
				$xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">';
				$xml .= implode("\t\t\t",$params);
				$xml .= PHP_EOL."\t\t".'</fieldset>';
				$xml .= PHP_EOL."\t".'</fields>';
			}
		}
		$xml .= PHP_EOL.'</metadata>';
	}
	return $xml;
}

In Fact here is the whole function, so just update the whole function in the file: ``` public function setCustomViewMenu(&$view) { $xml = ''; // build the file $target = array('site' => $view['settings']->code); $done = $this->buildDynamique($target,'menu'); if ($done) { // set the lang $lang = ComponentbuilderHelper::safeString('com_'.$this->fileContentStatic['###component###'].'_menu_'.$view['settings']->code, 'U'); $this->langContent['adminsys'][$lang.'_TITLE'] = $view['settings']->name; $this->langContent['adminsys'][$lang.'_OPTION'] = $view['settings']->name; $this->langContent['adminsys'][$lang.'_DESC'] = $view['settings']->description; //start loading xml $xml = '<?xml version="1.0" encoding="utf-8" ?>'; $xml .= PHP_EOL.'<metadata>'; $xml .= PHP_EOL."\t".'<layout title="'.$lang.'_TITLE" option="'.$lang.'_OPTION">'; $xml .= PHP_EOL."\t\t".'<message>'; $xml .= PHP_EOL."\t\t\t".'<![CDATA['.$lang.'_DESC]]>'; $xml .= PHP_EOL."\t\t".'</message>'; $xml .= PHP_EOL."\t".'</layout>'; if (isset($this->hasIdRequest[$view['settings']->code]) || isset($this->hasCatIdRequest[$view['settings']->code])) { $xml .= PHP_EOL."\t".''; $xml .= PHP_EOL."\t".'<fields name="request">'; $xml .= PHP_EOL."\t\t".'<fieldset name="request"'; $xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"'; $xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">'; if (isset($this->hasIdRequest[$view['settings']->code]) && ComponentbuilderHelper::checkArray($this->hasIdRequest[$view['settings']->code])) { foreach($this->hasIdRequest[$view['settings']->code] as $requestFieldXML) { $xml .= PHP_EOL."\t\t\t".$requestFieldXML; } } if (isset($this->hasCatIdRequest[$view['settings']->code]) && ComponentbuilderHelper::checkArray($this->hasCatIdRequest[$view['settings']->code])) { foreach($this->hasCatIdRequest[$view['settings']->code] as $requestFieldXML) { $xml .= PHP_EOL."\t\t\t".$requestFieldXML; } } $xml .= PHP_EOL."\t\t".'</fieldset>'; $xml .= PHP_EOL."\t".'</fields>'; } if (isset($this->frontEndParams) && isset($this->frontEndParams[$view['settings']->name])) { // first we must setup the fields for the page use $params = $this->setupFrontendParamFields($this->frontEndParams[$view['settings']->name],$view['settings']->code); // now load the fields if (ComponentbuilderHelper::checkArray($params)) { $xml .= PHP_EOL."\t".''; $xml .= PHP_EOL."\t".'<fields name="params">'; $xml .= PHP_EOL."\t\t".'<fieldset name="basic" label="COM_'.$this->fileContentStatic['###COMPONENT###'].'"'; $xml .= PHP_EOL."\t\t\t".'addrulepath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/rules"'; $xml .= PHP_EOL."\t\t\t".'addfieldpath="/administrator/components/com_'.$this->fileContentStatic['###component###'].'/models/fields">'; $xml .= implode("\t\t\t",$params); $xml .= PHP_EOL."\t\t".'</fieldset>'; $xml .= PHP_EOL."\t".'</fields>'; } } $xml .= PHP_EOL.'</metadata>'; } return $xml; } ```

Llewellyn commented

2017-11-08 12:34:48 +00:00

Please test and let me know

kevincam3 commented

2017-11-08 12:46:48 +00:00

(Migrated from github.com)

Tested it and it works. Thanks.

👍 1

The addrulepath and addfield path missing from menu parameter xml #169
